Swivel

Professional HDD Swivel

The Colli Equipment HDD swivel is an anti-torsion rotating joint designed for pipe installation during Horizontal Directional Drilling (HDD) operations.

During pullback, it transfers the pulling force from the drilling rig to the pipeline while eliminating the rotation transmitted by the drill rods. This reduces torsion and mechanical stress on the pipe, helping make one of the most critical phases of the job safer, smoother and more controlled.

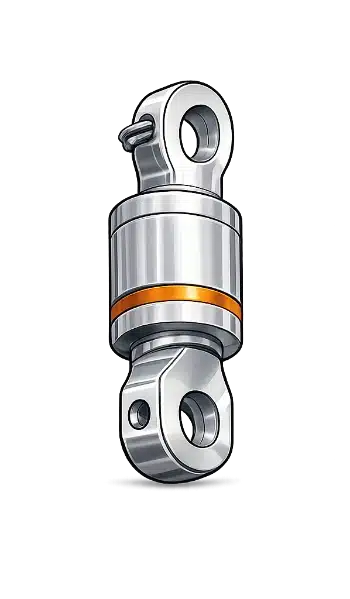

Mini Rig

For small and medium drilling rigs, available from 10 to 80 TON with Clevis-Clevis, Clevis-Pin and Clevis-Box connections.

AVAILABLE MODELS

10 TON Clevis-Clevis / Clevis-Pin

20 TON Clevis-Clevis / Clevis-Pin

30 TON Clevis-Clevis / Clevis-Pin

40 TON Clevis-Clevis / Clevis-Pin / Clevis-Box

60 TON Clevis-Clevis / Clevis-Box

80 TON Clevis-Clevis / Clevis-Box

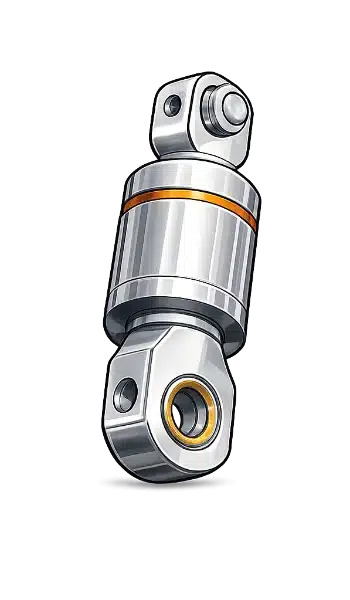

Heavy Duty Pullback

For demanding HDD pullback operations, available from 100 to 350 TON with Clevis-Pin and Clevis-Box connections.

AVAILABLE MODELS

100 TON Clevis-Pin / Clevis-Box

150 TON Clevis-Pin / Clevis-Box

200 TON Clevis-Pin / Clevis-Box

250 TON Clevis-Pin / Clevis-Box

300 TON Clevis-Pin / Clevis-Box

350 TON Clevis-Pin / Clevis-Box

Get More Info

Applications

HDD Swivel for Pipe Pulling

This directional drilling swivel is designed for HDD contractors, trenchless operators and companies involved in the installation of steel or polyethylene pipelines.

It is suitable for HDD pullback operations, pipe pulling and, in some cases, borehole reaming on smaller-scale projects. Its purpose is to manage pulling force, reduce torsion and support the controlled installation of the pipe into the borehole.

Advantages

Built for Pullback Loads

Every Colli Group swivel is engineered to deliver strength, control and reliability in demanding HDD applications.

Bidirectional capability

Designed to withstand axial tensile loads during pullback and axial compression loads when pushing.

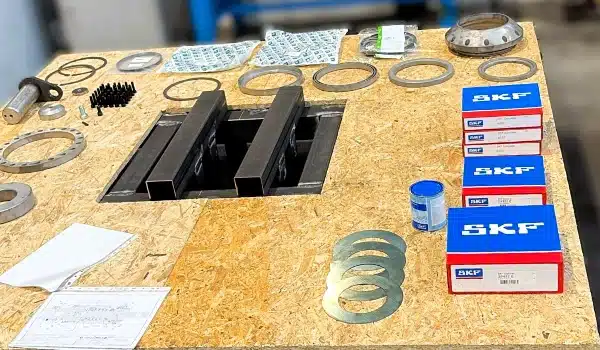

SKF Explorer

SKF Explorer thrust bearings for extreme loads (radial and axial), longer life and reduced maintenance.

Protected internal lubrication

The quick-greasing system reduces friction and wear, helping protect bearings from contamination.

Clevis End Connections

Dedicated end connections help reduce misalignment and radial loads during pullback.

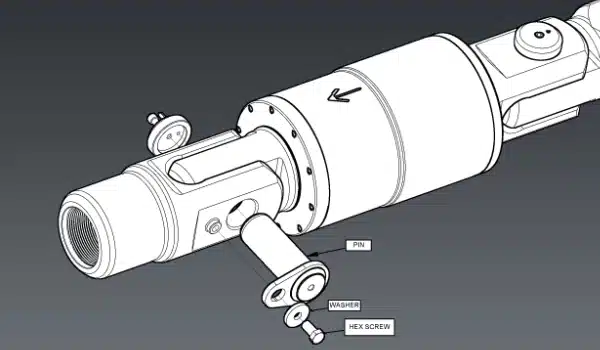

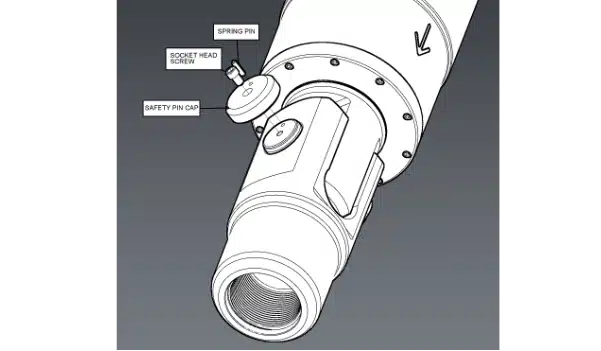

Safety Locking Pin

Anti-release and anti-rotation locking system for secure assembly pin retention.

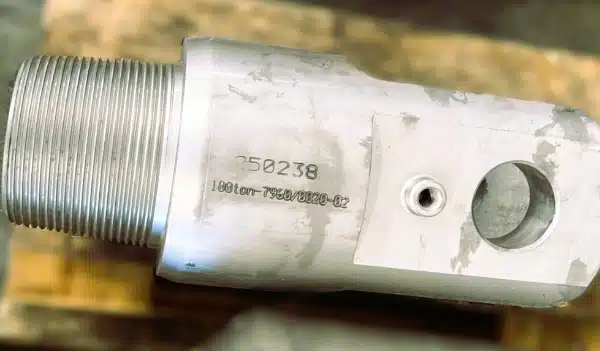

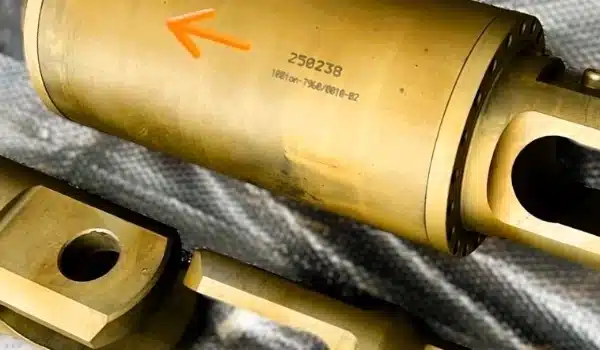

Product traceability

Stamped serial numbers allow materials, machining processes and treatments to be traced.

Send a Request

Experience

Guarantee of strength and durability

Our field experience allows us to develop robust, reliable components suited to real working conditions. From bearing selection and stress analysis to dynamic testing and traceability, every stage is focused on ensuring consistent performance in Horizontal Directional Drilling operations.

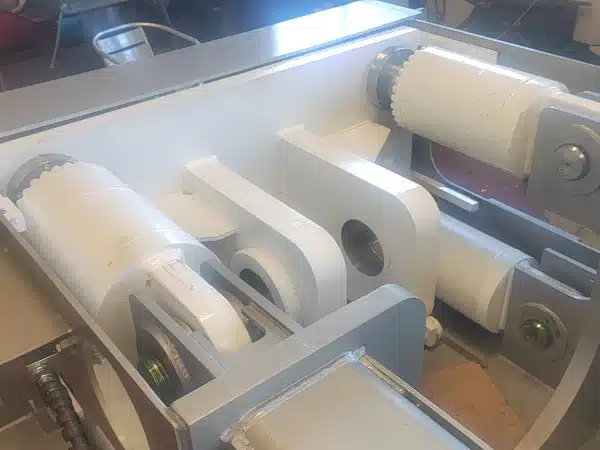

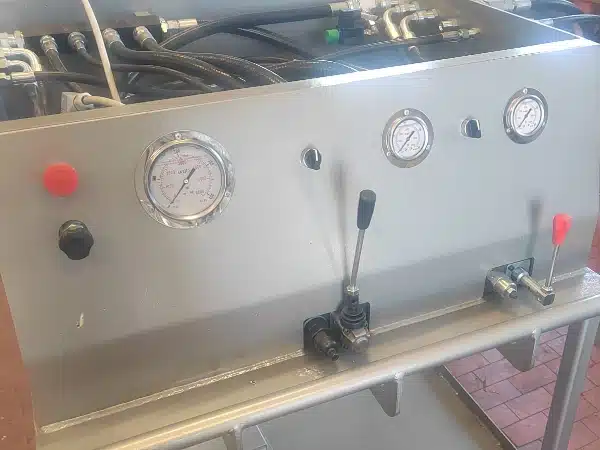

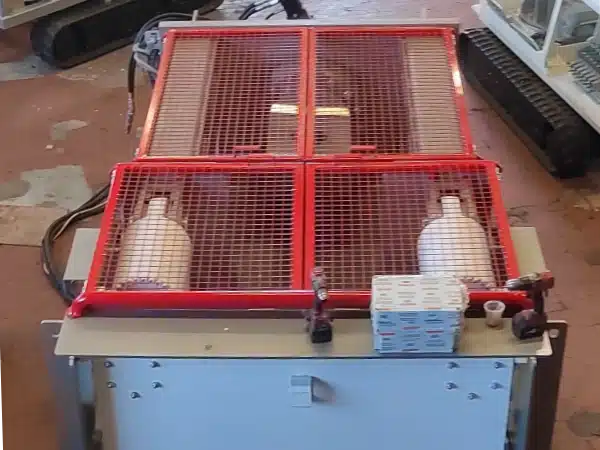

Swivel Dynamic Testing Machinery

A unique machine designed and built to perform dynamic tensile testing on every swivel we manufacture, from 50 to 500 TON. It is equipped with a data acquisition unit to monitor the applied pulling force and rotation speed.
